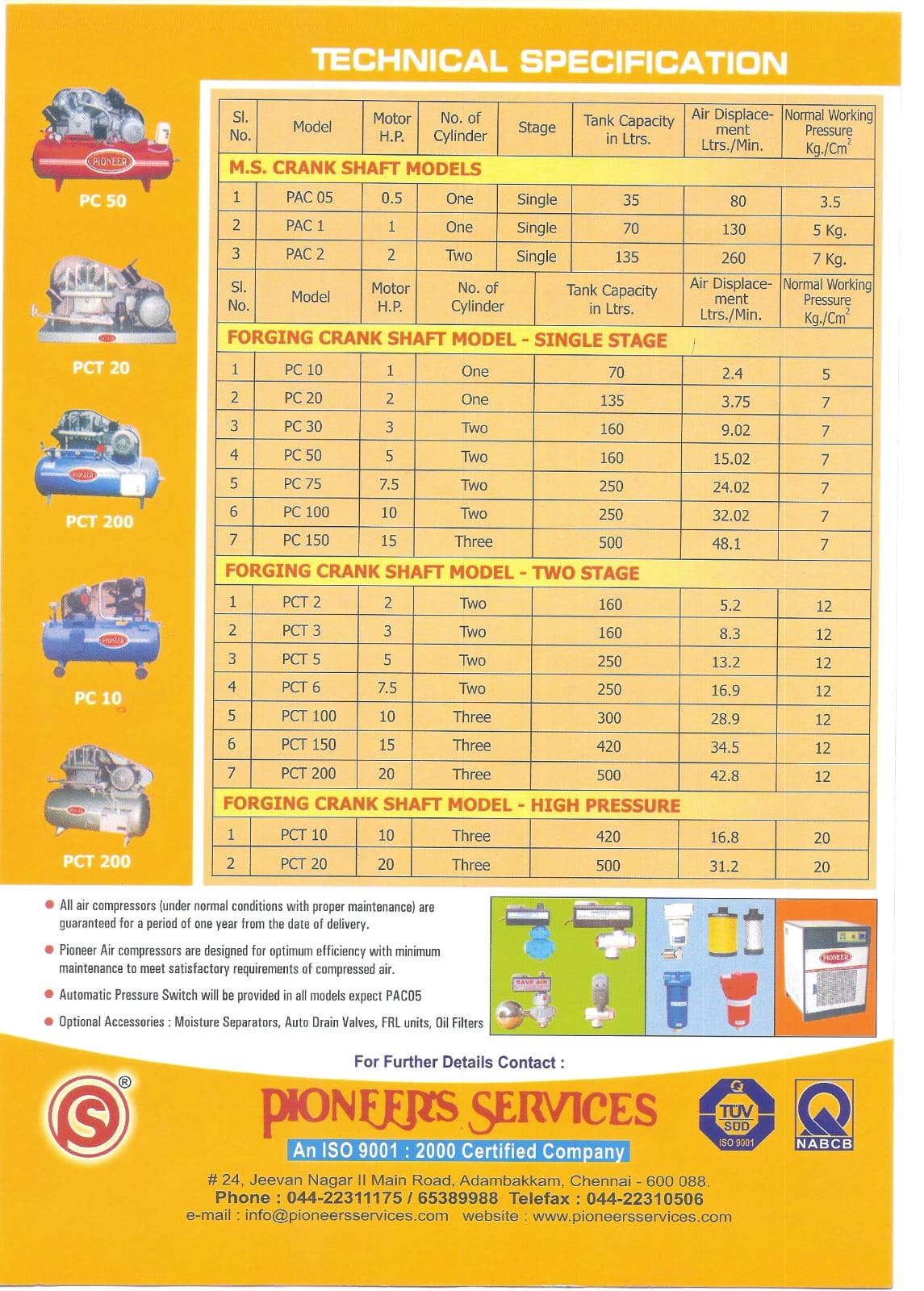

Technical Specification

M.S. CRANK SHAFT MODELS
Sr.No Model Motor H.P. No.of Cylinder Tank Capacity in Ltrs. Air Displacement Ltrs./Min. Normal Working Pressure
1 PAC 05 0.5 one 35 80 3.5
2 PAC 1 1 one 70 130 5kg
3 PAC 2 2 Two 135 260 7kg
FORGING CRANK SHAFT MODEL-SINGLE STAGE
Sr.No Model Motor H.P. No.of Cylinder Tank Capacity in Ltrs. Air Displacement Ltrs./Min. Normal Working Pressure
1 PC 10 1 one 70 2.4 5
2 PC 20 2 one 135 3.75 7
3 PC 30 3 Two 160 9.02 7
4 PC 50 5 Two 160 15.02 7
5 PC 75 7.5 Two 250 24.02 7
6 PC 100 10 Two 250 32.02 7
7 PC 150 15 Three 500 48.1 7
FORGING CRANK SHAFT MODEL-TWO STAGE
Sr.No Model Motor H.P. No.of Cylinder Tank Capacity in Ltrs. Air Displacement Ltrs./Min. Normal Working Pressure
1 PCT 2 2 Two 160 5.2 12
2 PCT 3 3 Two 160 8.3 12
3 PCT 5 5 Two 250 13.2 12
4 PCT 6 7.5 Two 250 16.9 12
5 PCT 100 10 Three 300 28.9 12
6 PCT 150 15 Three 420 34.5 12
7 PCT 200 20 Three 500 42.8 12
